Access Control – 4-Door Controller

Description

Access Control – 4-Door Controller

Ensure seamless and secure access management with the LTS 4-Door Controller. Designed for robust security systems, this controller offers exceptional reliability and scalability. Perfect for facilities requiring enhanced access control, it supports up to 4 door connections, making it ideal for businesses, commercial properties, or institutions.

Key Features:

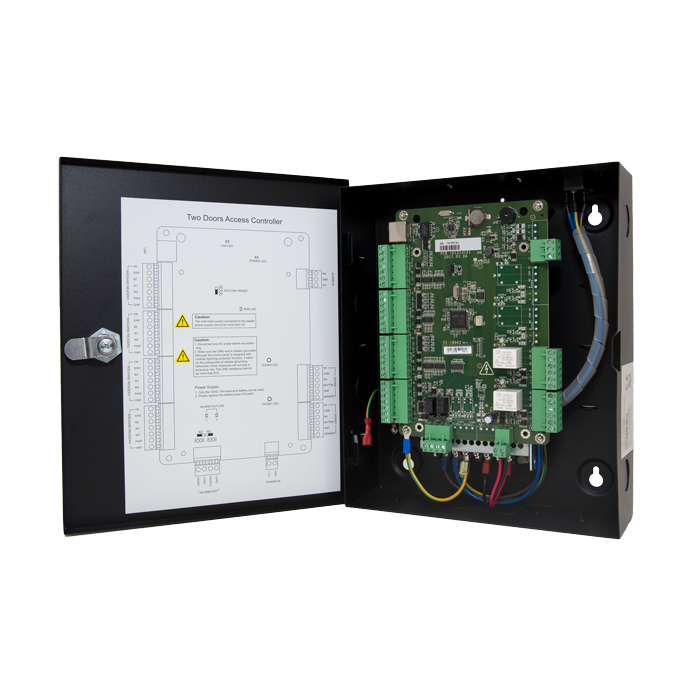

• Secure Metal Enclosure: Durable and tamper-resistant with a built-in lock for added protection.
• Reader Compatibility: Supports 4 x Wiegand 34-bit card readers, perfect for efficient access control management.
• Ample Storage Capacity: Holds up to 10,000 valid cards and logs up to 50,000 events, ensuring smooth data management.
• Built-in Power Supply: Equipped with a 12 V DC / 8.5 A power supply for reliable performance.
• App Access Ready: Option to integrate with the X-VMS server for seamless remote access through a mobile app.
• UL Listed: Certified for safety and quality.

Specifications:

• Voltage: 100 ~ 240V AC
• Power Consumption: ≤ 3.5 W (without load)
• Processor: 32-bit for fast and efficient data processing
• Uplink Interface: TCP/IP Network Interface and RS-485 for versatile communication
• Downlink Interface: Wiegand interface, compatible with industry-standard readers
• Input Interface: 4 x Door Magnetic, 4 x Door Switch, 4 x Case Input for enhanced control
• Output Interface: 4 x Door Switch Relay, 4 x Alarm Relay for complete security management
• LED Indicators: Monitors Power Supply, Communication, and Abnormal Status
• Operating Conditions: Temperature: -4° to 149° F (-20° to 65° C); Humidity: 10% to 90% (Non-Condensing)
• Dimensions: Compact size at 11.2 x 9.3 x 2.7 inches

Why Choose the LTS 4-Door Controller?

With its secure, metal-encased design and reliable access control features, this system is perfect for managing multiple access points within any facility. The large storage capacity, app compatibility, and UL listing make it a go-to choice for both small and large installations. Plus, with built-in status indicators and easy-to-integrate interfaces, monitoring and controlling access points is streamlined and efficient.
