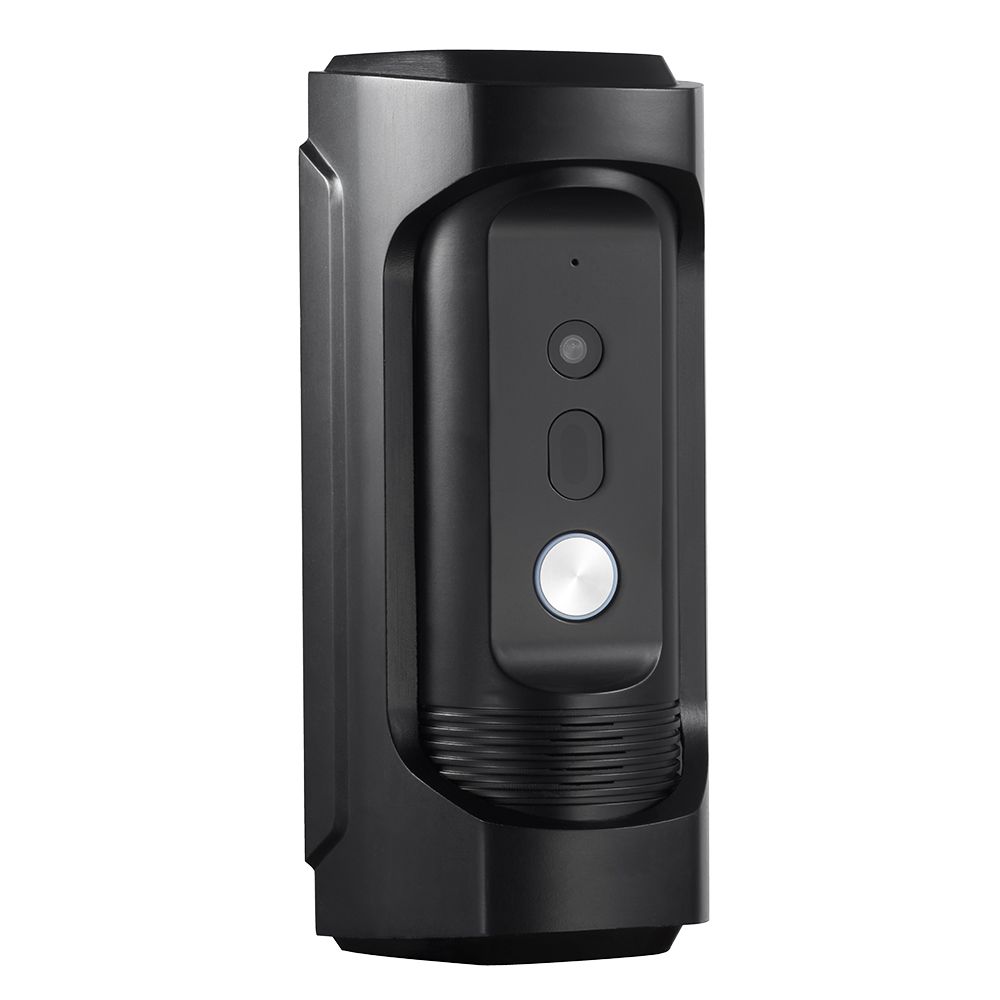

IP Video Intercom Main Module with Camera

• Supports communication with the master station and all indoor stations
• Access control supports multiple door opening modes (indoor station, master station, client software, and web)
• Self-adaptive Infrared supplemental lighting with up to 15-foot (5 m) range
• High-performance embedded SOC processor
• IK09 and IP66

Audio / Video Functions

• HD video surveillance with WDR wide angle and high performance CMOS, up to 720p @ 30 fps
• Noise suppression and echo cancellation
• H.264 video compression standard
• Low illumination imaging

Alarm Functions

• Supports magnetic door alarms
• Auto-uploads alarm messages to the master station or the client software

Remote Controls

• Remote reboot, remote upgrade, time synchronization via NTP, and batch configuration function
• Supports remote access and OSD display
• Supports motion detection

Additional Features

• ISAPI and ONVIF supported to ensure greater compatibility and interoperability among various platforms
• Supports bit rate and frame rate configuration, P/N video standard configuration, email configuration, and auto day / night switching
• Auto-uploads captured images to the FTP or the client software while unlocking the door
